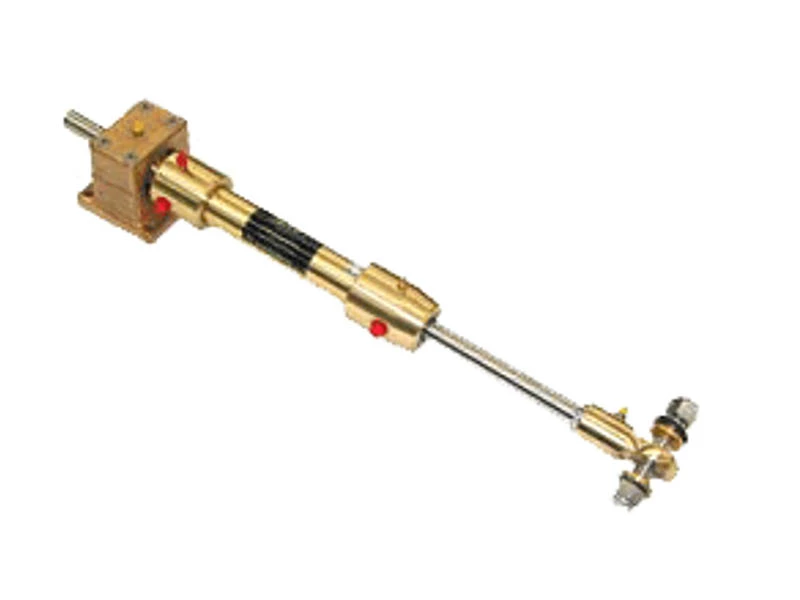

HyDrive 150-9 Heavy Duty Cylinder

The HyDrive 150-9 Heavy Duty Cylinder range of
precision-made, hydraulic marine cylinders are perfectly suited to
the harsh marine environment and the punishment of heavy commercial
use.

HyDrive 150-9 Heavy Duty Cylinder
Specifications:

• Cylinder Model: HD150-9
• Torque KgM: 107
• Volume cc’s: 172
• 301 Helm Turns: 4.9
• 304 Helm Turns: 4
• 305 Helm Turns: 2

Notes:

• The above torques are calculated at a system pressure of
  1000psi. For safety reasons, HyDrive steering is capable of
  producing approx. double the torque shown in case of rudder damage
  or weather extremes.

• The torque figures for dual cylinders are for push-pull
  circuits only, and not fluid-link circuits. Fluid-link dual
  cylinders have the same torque and wheel turns lock to lock as a
  single cylinder.

• Specifications may be subject to change without
  notice.
