HyDrive COMKIT5 Commander Kit 5 Steering System With 18ft Flexible Hose

Tired of fighting the steering on your boat?

The HyDrive COMKIT5 Front Mount Style Outboard Steering
Kit is ideal for Outboards up to single 200HP or dual
outboards Counter-rotating up to 400HP total. The new 516FM
cylinder utilises the same materials and technology as the 511
Bullhorn Type cylinder to provide a powerful front mount cylinder
with superior quality and performance to other alternatives. So if
you want to install a durable and reliable steering system in your
boat, put the HyDrive Steering System in command.

Why fit HyDrive?
The unique saltwater resistant design and precision manufacturing
offer the most corrosion resistance steering cylinders on the
market, resulting in greater product longevity in the harsh marine
environment. Designed as a complete DIY installation, everything
you need is supplied including detailed step by step
instructions.

Commander Series
The Commander Series (COMKIT models) are designed for use on
pleasure boats only with outboard motor Horsepower limitations.
They utilise a state-of-the-art aluminium cylinder design, with
unique electrolytic insulation between metals for maximum corrosion
resistance.

The Steering Cylinder
The HyDrive COMKIT5 Commander Series Front Mount
Kit features the new front-mount style cylinder (Model
516FM) and is suitable for leisure boats with single outboards up
to 200HP or twin outboards up to 400HP total (counter rotating).
The new cylinder barrel construction offers increased strength and
a compact design. It’s manufactured in high tensile aluminium for
performance and protection. Precision ground and polished 316
stainless steel piston rods for maximum service life.

The Helm
The new Commander Series 501 Helm Unit is the result of two years
of design development and combines the elements of great
performance and economic design.

HyDrive COMKIT5 Front Mount Style Outboard Steering Kit
Features:

• For outboards up to single 200HP or dual outboards
  counter-rotating up to 400HP total
  New model 501N8 helm (28cc per rev) – high tech composite alloy
  housing – stronger than aluminium and totally corrosion resistant
  for maximum exposure to the elements
• Simple installation to any outboard
• Compact design
• Increased strength

HyDrive COMKIT5 Front Mount Style Outboard Steering Kit
Specifications:

• Wheel turns lock to lock 501 help: 4.9
• Model 516FM cylinder dimensions: 535.5 mid stroke length, 737.5
  Full stroke length
• Model 501: Capacity: 28 cc/rev
• Maximum working pressure: 800 PSI
• Absolute maximum working pressure: 1000 PSI

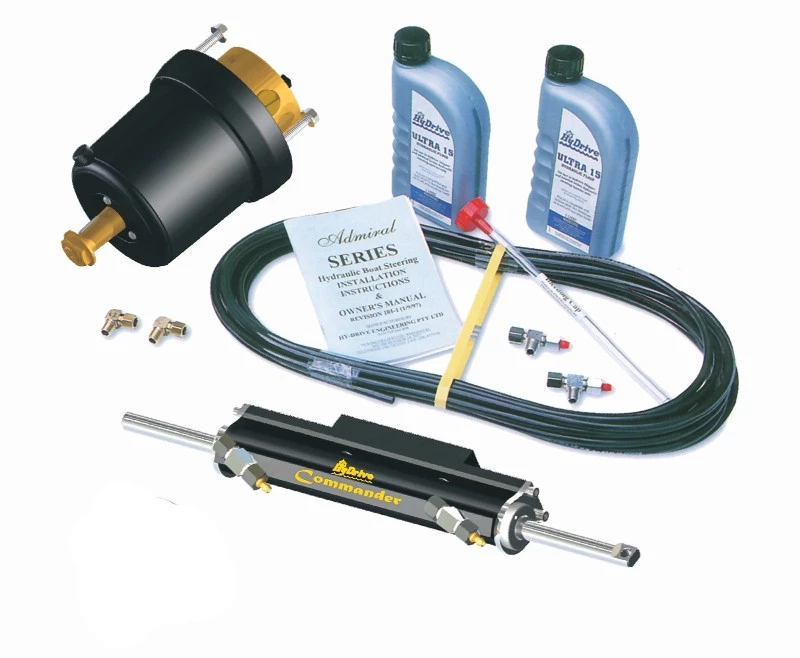

What’s in the kit:

• 501N8 helm
• new Model 516FM cylinder
• 2 litres ULTRA-15 fluid
• 15M (50ft) nylon hydraulic tubing
• fittings
• Bleeder kit
• Instruction manual
• 8ft flexible hose with swaged fittings and running bulk head
  fittings

HyDrive COMKIT5 Front Mount Style Outboard Steering Kit Product
Data Sheet

HyDrive Outboard Steering System Selection Guide

HyDrive Commander Series Brochure
