HyDrive Commander COMKIT5-101 Front Mount Outboard Kit

Tired of fighting the steering on your boat?

The new HyDrive Commander COMKIT5-101 Front Mount Outboard
Kit is a good quality kit that comes with 101 brass helm
and 516FM aluminium ram. It’s designed to offer a budget range of
hydraulic steering for leisure and commercial boat users without
sacrificing quality and performance. So if you want to install a
durable and reliable steering system in your boat, put the HyDrive
Steering System in command.

The Steering Cylinder
The HyDrive COMKIT5 Commander Series Front Mount
Kit features the new front-mount style cylinder (Model
516FM) and is suitable for leisure boats with single outboards up
to 200HP or twin outboards up to 400HP total (counter rotating).
The new cylinder barrel construction offers increased strength and
a compact design. It’s manufactured in high tensile aluminium for
performance and protection. Precision ground and polished 316
stainless steel piston rods for maximum service life.

The Helm
The new Commander Series 501 Helm Unit is the result of two years
of design development and combines the elements of great
performance and economic design.

How to choose a Steering System for your
boat:
To help work out which model of cylinder to fit to any particular
outboard engine – please check out
this link where an explanation of each kind or type of
cylinder is given, plus it comes complete with selection chart
guides for figuring out what model can be used on each motor brand
and HP.

HyDrive Commander COMKIT5-101 Front Mount Outboard Kit
Features:

• For outboards up to single 200HP or dual outboards
  counter-rotating up to 400HP total
  New model 501N8 helm (28cc per rev) – high tech composite alloy
  housing – stronger than aluminium and totally corrosion resistant
  for maximum exposure to the elements
• Simple installation to any outboard
• Compact design
• Increased strength

HyDrive Commander COMKIT5-101 Front Mount Outboard Kit
Specifications:

• Wheel turns lock to lock 501 help: 4.9
• Model 516FM cylinder dimensions: 535.5 mid stroke length, 737.5
  Full stroke length
• Model 501: Capacity: 28 cc/rev
• Maximum working pressure: 800 PSI
• Absolute maximum working pressure: 1000 PSI

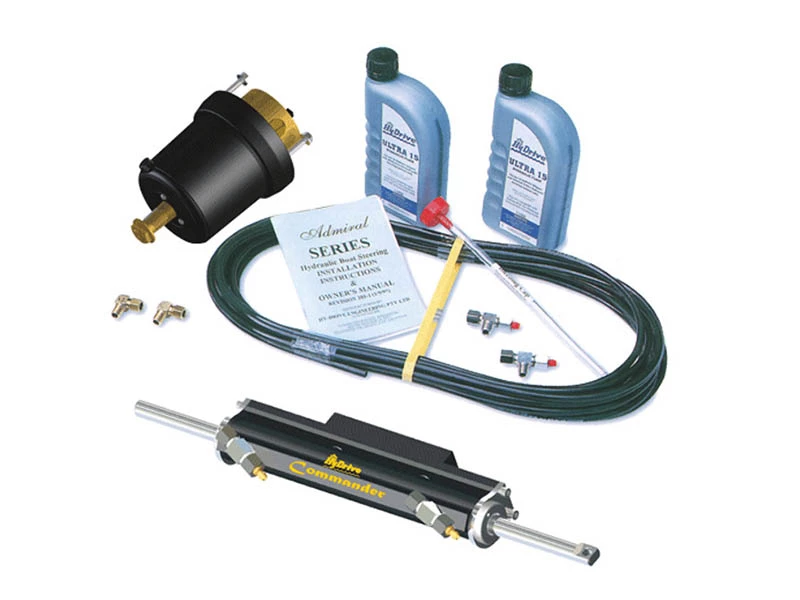

What’s in the kit:

• 501N8 helm
• new Model 516FM cylinder
• 2 litres ULTRA-15 fluid
• 15M (50ft) nylon hydraulic tubing
• fittings
• Bleeder kit
• Instruction manual
• Choice of 50ft nylon hose kit, 18ft or 23ft flexible hose with
  swaged fittings and running bulk head fittings
