HyDrive SPORTKIT Side Mount Style Outboard Steering Kit 150-175HP

Tired of fighting the steering on your boat?

The HyDrive SPORTKIT Side Mount Style Outboard Steering
Kit is ideal for pleasure boats or commercial with single
outboards up to 200HP or twin outboards up to 300HP counter
rotating.

Why fit HyDrive?
The unique saltwater resistant design and precision manufacturing
offer the most corrosion resistance steering cylinders on the
market, resulting in greater product longevity in the harsh marine
environment. Designed as a complete DIY installation, everything
you need is supplied including detailed step by step
instructions.

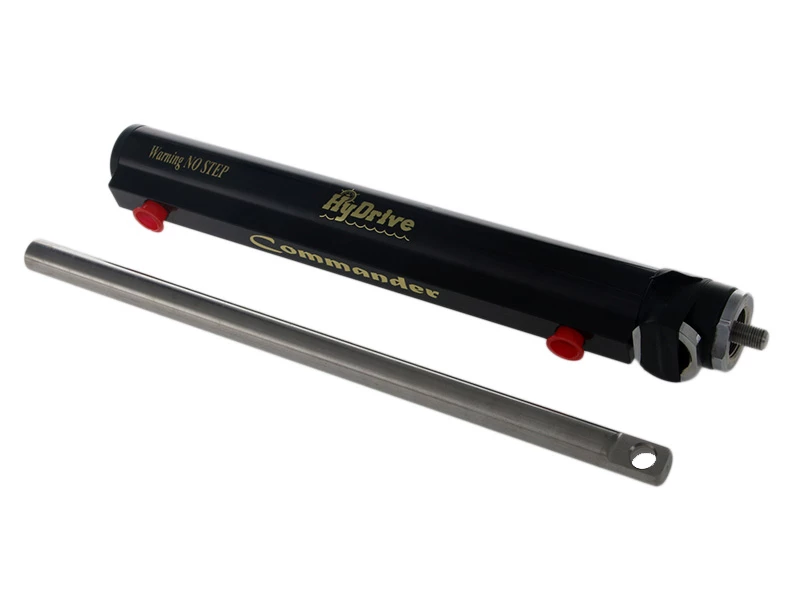

The Steering Cylinder
The side-mount type cylinder is popular because of the ease of
fitting that allows a very simple upgrade from cable steering to
hydraulic for vastly improved results. Selection of this type of
steering is entirely dependent on the HP of the outboard as the
type of mount is universal to all brands and HP of motors that are
fitted with tilt-tubes.

Fitting is simple as the hydraulic cylinder screws directly onto
the threaded tilt-tube in the same location as the existing cable
steering. It connects to the tiller arm of the outboard uniting the
standard drag-link already connecting the cable.

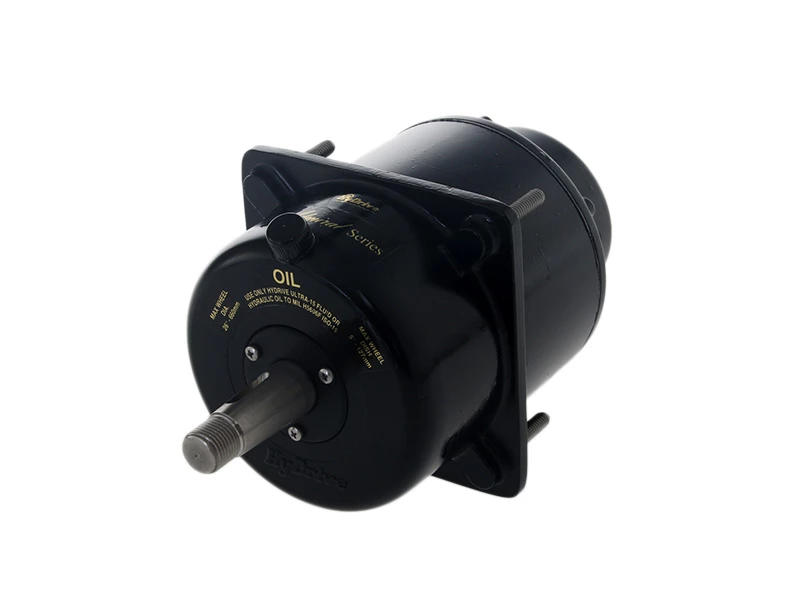

Commander Series 401 Helm
The Pro series features the model 401 (28cc/rev) and 402 (35cc/rev)
helm units. These helms feature high performance bearings and
components designed for use in commercial and high HP applications
where optimum performance is required.

HyDrive SPORTKIT Side Mount Style Outboard Steering Kit
Features:

• Compact, tube-mount cylinder
• Capacity that can accommodate twin 150HP engines (counter
  rotating) or a single 175HP engine
• Power and the reliability of hydraulic steering
• Easy-fit attachment
• Requires minimal clearance of 315mm

What’s in the kit:

• 1 x 401N8 helm
• 1 x 212T cylinder

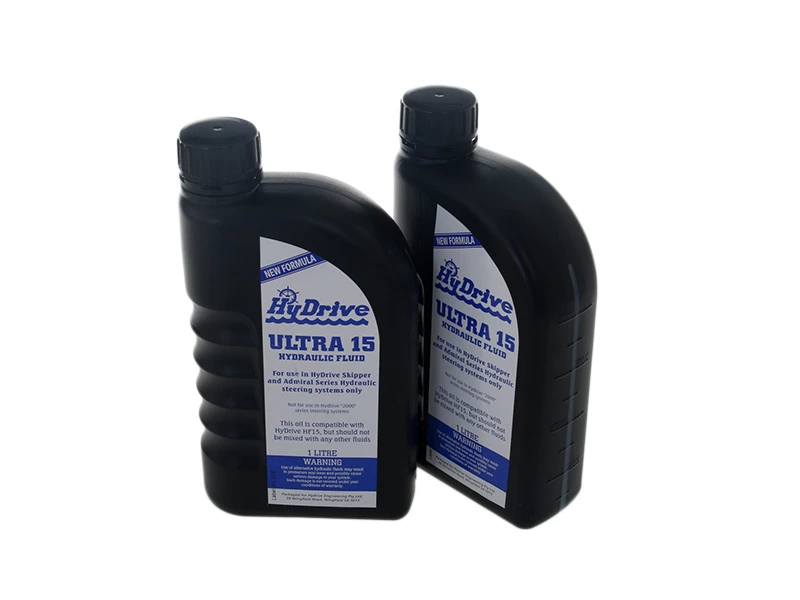

• 2 litres ULTRA-15 fluid

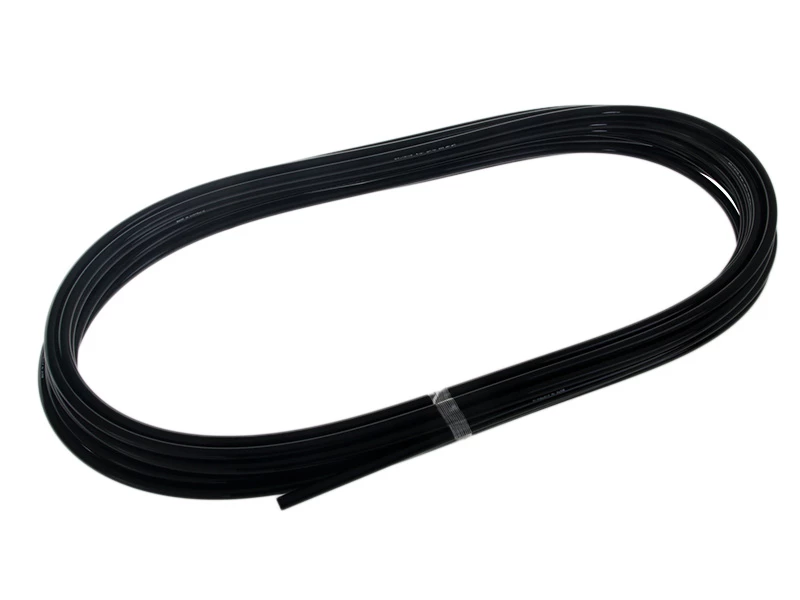

• 15M nylon hydraulic tubing

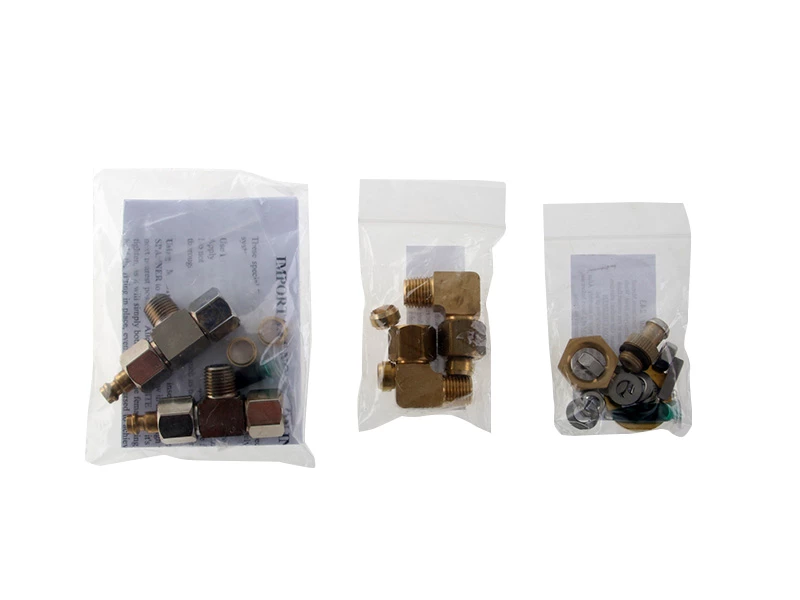

• Fittings
• Bleeding kit

Note: Not designed for inboards.
